ARTICULATED ARM MANIPULATOR UP TO 800 KG
ARTICULATED ARM SYSTEM
The articulated arm manipulator from Zeilhofer Handhabungstechnik is a lifting aid for the pendulum-free handling of loads up to 800 kg with a working radius of up to 4.5 meters. It is controlled pneumatically or electro-pneumatically; the stroke reaches up to approx. 2,100 mm and, like the radius, is designed for each project. It is available in four mounting options: stationary or mobile, each for floor or ceiling mounting. All versions have a load capacity of up to 800 kg; they differ in boom length. The rigid load guidance prevents swinging and enables millimeter-precise positioning. It costs from approx. €12,000 net, is manufactured in Holzkirchen with a custom-designed fixture and is delivered 15 to 25 weeks after order, depending on complexity.
For each application, the articulated arm manipulator is equipped with a custom-designed fixture.
Zeilhofer provides the complete solution from a single source, from planning and control systems to fixtures and after-sales service. The manipulator is manufactured at the Holzkirchen site in Germany.
ASSEMBLY OPTIONS
FOUR VARIANTS. ALWAYS RIGID LOAD CONTROL.
The articulated arm manipulator adapts to your hall, not the other way around. Choose the right configuration for your production area.
01 STATIONARY ON THE FLOOR - Fixed workstation with maximum stability
The manipulator is firmly anchored to the factory floor. Ideal for defined workstations with a large operating radius. Particularly economical when used in a fixed location (optionally movable by forklift or pallet truck).
YOUR ADVANTAGES
-
Fixed workstation with maximum stability
-
Easy and quick assembly
-
Rigid load guidance
-
Large working radius up to 4,500 mm
-
Load capacity up to 800 kg
-
Smooth-running lifting cylinder made of aluminum
-
Rotary bearing with 360° continuous rotary feedthrough
-
Rotation stops or limitations of the working area
-
Brakes on the individual axes of rotation
-
pneumatic or electro-pneumatic control

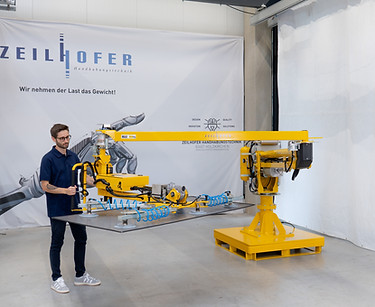

02 MOBILE ON THE FLOOR - Mobile via forklift or pallet truck, without ceiling penetration
In this version, the articulated arm manipulator is mounted on a stable base plate. The entire unit is mobile and can be flexibly transported to the work site using a pallet truck, electric pallet jack, or forklift.
YOUR ADVANTAGES
-
The mobile solution allows for optimal use of existing space.
-
Mobile with pallet jack / forklift
-
Rigid load guidance
-
Large working radius up to 4,500 mm
-
Load capacity up to 800 kg
-
Smooth-running lifting cylinder made of aluminum
-
Rotary bearing with 360° continuous rotary feedthrough
-
Rotation stops or limitations of the working area
-
Brakes on the individual axes of rotation
-
pneumatic or electro-pneumatic control
03 STATIONARY CEILING & STEEL CONSTRUCTION - Floor remains clear, most space-saving solution
The manipulator is securely anchored to the hall ceiling or a steel structure. It's the most space-saving solution for confined production areas, as the floor remains completely clear for forklifts, vehicles, and employees.
YOUR ADVANTAGES
-
Particularly space-saving solution
-
Free hall floor for operation
-
Rigid load guidance
-
Large working radius up to 4,500 mm
-
Load capacity up to 800 kg
-
Smooth-running lifting cylinder made of aluminum
-
Rotary bearing with 360° continuous rotary feedthrough
-
Rotation stops or limitations of the working area
-
Brakes on the individual pivot axes
-
pneumatic or electro-pneumatic control
04 MOVABLE ON THE CEILING & STEEL CONSTRUCTION - Largest operating area
The manipulator is attached to a rail system and can move in the X and Y directions throughout the entire production hall. Maximum flexibility for changing workstations and large hall areas.
YOUR ADVANTAGES
-
Largest work area: entire hall usable
-
Can be used variably for changing stations
-
Rigid load guidance
-
Large working radius up to 4,500 mm
-
Load capacity up to 800 kg
-
Smooth-running lifting cylinder made of aluminum
-
Rotary bearing with 360° continuous rotary feedthrough
-
Rotation stops or limitations of the working area
-
Brakes on the individual pivot axes
-
pneumatic or electro-pneumatic control
VERSION
Drive: pneumatic or electro-pneumatic
Control: balancing, safety control and further options
Gripping device: custom designed
Production: Holzkirchen, Germany
DESIGN
Mounting: floor or ceiling, stationary or traversing
Pivot bearing: 360° endless rotary feed-through
Lifting cylinder: smooth-running aluminium
Brakes: on the individual rotary axes
PERFORMANCE
Load capacity: up to 800 kg
Working radius: up to 4.5 m, per project
Stroke: up to approx. 2,100 mm, per project
Load guidance: rigid and pendulum-free
TECHNICAL DATA
THE ARTICULATED ARM MANIPULATOR AT A GLANCE
All control options: controls for manipulators. Matching grippers: gripping devices.
IN ACTION
THE ARTICULATED ARM MANIPULATOR IN USE
See the articulated arm manipulator live in production as it effortlessly moves heavy loads.
APPLICATION EXAMPLES
TYPICAL APPLICATIONS OF THE ARTICULATED ARM MANIPULATOR
The articulated arm manipulator is used wherever heavy or bulky components up to 800 kg must be guided rigidly and positioned precisely: in foundries, dairies, e-mobility, roll and tube processing, and at changing workstations.
ROLLS · UP TO 800 KG
ROLLS AND TUBES
Paper and film rolls, steel and aluminum tubes up to 800 kg: mandrels grip from the inside, clamping grippers from the outside. Rigid guidance prevents collisions with large diameters.
E-MOBILITY
OBC ASSEMBLY
Remove the on-board charger from the container, position it and hold it until it is bolted in place.
FOUNDRY · 1 TO 69 KG
SAND CORES
Sand cores from 1 to 69 kg are gripped from the inside via the core bore, rotated and gently placed in the mold.
FLEXIBLE · MOBILE
MULTIPLE WORKSTATIONS
Mounted on a base plate and moved between several workstations by forklift or pallet truck.
FOOD · UP TO 90 KG
DAIRY: CHEESE MOLDS
Cheese block molds up to 90 kg in dairies, built in stainless steel to hygienic design and HACCP requirements.
18 INDUSTRIES
MORE INDUSTRIES
Automotive, logistics, mechanical engineering, glass, sheet metal and more: all industries and applications at a glance.
Every Zeilhofer articulated arm manipulator is built with its own fixture for a specific component.
PRICE AND DELIVERY TIME
HOW MUCH DOES AN ARTICULATED ARM MANIPULATOR COST?
A Zeilhofer articulated arm manipulator costs from approx. €12,000 net. With fixture and controls, most systems are in the range of €20,000 to €25,000; special designs, for example for ATEX areas or foundries, start at €30,000. Delivery time is 15 to 25 weeks, depending on complexity.
ENTRY LEVEL
FROM €12,000
Articulated arm manipulator in standard design, net, plus installation and commissioning.
TYPICAL · WITH FIXTURE
€20,000 TO €25,000
Most systems including a custom fixture for your component and controls.
SPECIAL DESIGN
FROM €30,000
For example for ATEX areas or foundries with higher requirements.
PRICE FACTORS AND PAYBACK
Four factors mainly determine the price: the fixture for your component, load capacity and working radius, the mounting variant and the controls. With frequent use, an articulated arm manipulator typically pays for itself within 18 to 30 months through fewer lost workdays, less damage and shorter cycle times.
DELIVERY TIME AND FINANCING
Delivery time is 15 to 25 weeks from order, depending on complexity, including design and pre-acceptance in Holzkirchen. You can finance through leasing (24 to 48 months) or hire purchase (12 to 48 months) with our partner Würth Leasing.
REQUEST A PRICE ESTIMATE
Tell us your component, weight and workstation. You will receive a price estimate for your articulated arm manipulator within 24 hours on working days.
All prices net, plus installation and commissioning. Price estimate for your component within 24 hours on working days.
COMPLETE SOLUTION
MORE THAN A PRODUCT - A COMPLETE SYSTEM
Every Zeilhofer system is part of a complete solution. Discover suitable fixtures, control options, and industry applications.
END-OF-ARM TOOLING
DEVICE
Grippers, suction cups, magnets, hooks, screwdrivers and custom solutions, individually developed for your component. CE-compliant, all from a single source.
DRIVE & CONTROL CONCEPT
CONTROL
Pneumatic or electro-pneumatic, with balancing, safety, or automatic control. Precisely tailored to your process.
INDUSTRY-SPECIFIC
APPLICATIONS
Automotive, foundry, glass & windows, logistics, mechanical engineering and 10+ other industries - see how other companies are benefiting.
DECISION GUIDE
ARTICULATED ARM, CABLE OR LIFTING AXIS?
Up to 150 kg and high cycle rates: cable manipulator. Up to 800 kg, off-center loads or rotary movement: articulated arm manipulator. Up to 1,200 kg, purely vertical: lifting axis ZH90.
UP TO 800 KG · THIS PAGE
ARTICULATED ARM MANIPULATOR
Load capacity: up to 800 kg
Movement: swivel, rotate, radius up to 4.5 m
Strength: off-center loads, torques
Typical: heavy, bulky components
UP TO 150 KG
CABLE MANIPULATOR
Load capacity: up to 150 kg
Movement: fast and sensitive on the cable
Strength: light, fast, economical
Typical: high-frequency handling
UP TO 1,200 KG
LIFTING AXIS ZH90
Load capacity: up to 1,200 kg
Movement: purely vertical, rigidly guided
Strength: highest load capacity in the range
Typical: cycle-timed assembly
More systems: ZH90 Flex-Arm lifting axis, Hebelift ZH and Multi-Axis Module ZH3. Not sure? Product finder or product comparison. Background: parallelogram manipulator and articulated jib explained.
FAQ / Q&A
FREQUENTLY ASKED QUESTIONS ABOUT THE ARTICULATED ARM MANIPULATOR
01 What does an articulated arm manipulator cost?
A Zeilhofer articulated arm manipulator costs from approx. €12,000 net. With fixture and controls, most systems cost between €20,000 and €25,000; special designs start at €30,000. Installation and commissioning are extra. We provide a price estimate for your component within 24 hours on working days.
02 What load capacity, radius and stroke does the articulated arm manipulator have?
The Zeilhofer articulated arm manipulator carries up to 800 kg, reaches a working radius of up to 4.5 m and a stroke of up to approx. 2,100 mm. Load capacity and reach are designed together for your application: the larger the radius, the greater the leverage.
03 What does pendulum-free load guidance mean?
The load cannot swing or deflect, as can happen with cable or chain systems. The rigid articulated arm guides the load firmly at all times and also absorbs torques and off-center loads. This enables millimeter-precise positioning.
04 Which mounting option suits my hall?
There are four versions: stationary or traversing, each on the floor or on the ceiling or steel structure. All carry up to 800 kg. Floor versions need no ceiling load capacity, ceiling versions keep the floor clear. On a base plate, the manipulator can be moved by forklift.
05 How is the articulated arm manipulator powered?
Pneumatically or electro-pneumatically, up to 800 kg in both cases. Pneumatic control balances the load intuitively and robustly; electro-pneumatic control additionally enables semi- and fully automated processes and PLC integration.
06 Which fixtures are available for the articulated arm manipulator?
Every system gets its own custom-designed fixture: grippers, suction cups, magnets, mandrels for inside gripping or combinations. The fixture determines safety and cycle time and is the biggest price factor.
07 What is the delivery time?
Depending on the complexity of the fixture, delivery takes 15 to 25 weeks from order, including design and pre-acceptance in Holzkirchen.
08 Can I lease an articulated arm manipulator?
Yes. Through Würth Leasing, leasing over 24, 36 or 48 months and hire purchase over 12 to 48 months are possible. We do not offer rental.
09 Articulated arm or cable manipulator: which fits better?
The articulated arm manipulator guides loads up to 800 kg rigidly and handles off-center loads. The cable manipulator guides the load via two wire ropes and is lighter and faster, but carries up to 150 kg. For heavy or bulky parts with a defined position, the articulated arm is the right choice.
10 Does an articulated arm manipulator have to be inspected annually?
Yes. In Germany, manipulators are subject to annual inspection under DGUV Regulation 54 and the Ordinance on Industrial Safety and Health (BetrSichV). Zeilhofer carries out these inspections for its own systems and for other makes.
